Hyper Spectral Lighting
for Hyper Spectral Imaging
The Solution for Next Gen Light Imaging
Modern Capabilities
- Hyperspectral lighting designed to spans visible and short-wave infrared (SWIR) spectrum up to 2500nm.
- Precise interaction with materials and organics to detect finite spectral features.
- Data captured contains chemical, biological or material specific information.
Applications
- Agriculture
- Brix/Moisture measurement, Sorting
- Food Quality and Safety
- Foreign material/Mold inspection
- Material Science
- Plastic/Textile sorting
- Mineral & Geological
- Soil analysis
- Medical Imaging
- Non-invasive diagnosis
- Remote Sensing and Environmental Monitoring
- Waste sorting & Recycling
- Plastic/Textile sorting, Metal recovery
- Art Inspection
- Under-layer imaging

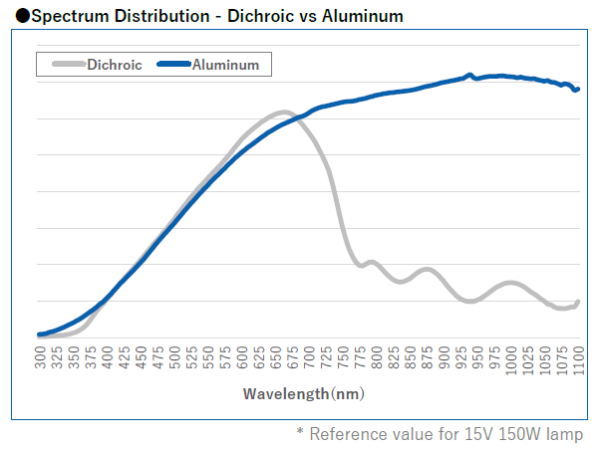

Halogen Lamps: Dichroic vs. Aluminized Coatings
Dichroic
- Dichroic coatings allow IR and other wavelengths to pass through the back of the reflector to reduce temperature and select wavelengths of light.
Aluminized
- Aluminized coatings have a high reflectivity and provide excellent broadband reflectance in both the visible and infrared spectrum.
- Aluminized deposition provides a consistent coverage of the reflector.
- Aluminized coating has a high thermal stability for heating elements.
HySiL Near Infrared Lamps by KLS
High illuminance long life near infrared lamp
A unique filament with specialized reflector designs: 900nm-2150nm high illuminance near infrared lamp.

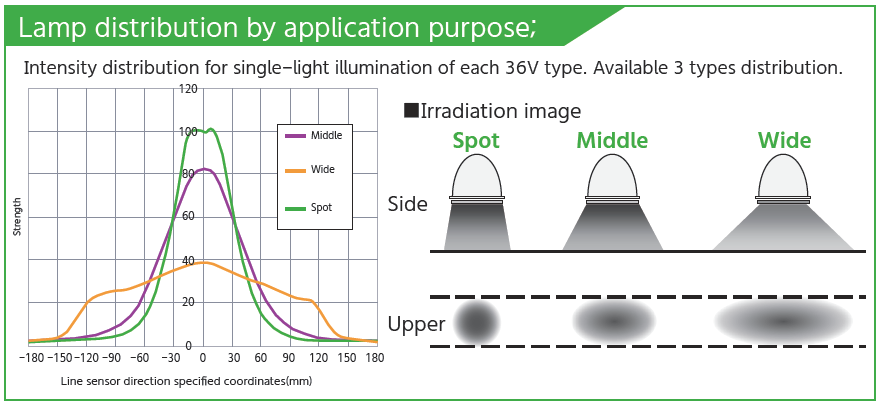

36V high power and 24V heat-suppressed in three beam types: Spot, Medium, and Wide.
A unique filament with specialized reflector designs: 900nm-2150nm high illuminance near infrared lamp.
36V high power and 24V heat-suppressed in three beam types: Spot, Medium, and Wide.
Aluminum Deposition Coated Reflector Halogen Lamps
| Model | Voltage | Wattage | K | Life (hr) | WD (mm) | Diameter (mm) | Base | FIL | Type |
|---|---|---|---|---|---|---|---|---|---|
| JCR 5.2-5 /3-AL/FA | 5.2 | 5 | 2600 | 8000 | – | 35.5 | GZ4 | C-6 | AL-Faceted |
| JTR 12-100 10H/5-AL | 12 | 100 | 3300 | 1000 | 32.0 | 50.7 | GZ6.35 | C-8 | AL-Specular |
| JTR 12-100 15H/5-AL | 12 | 100 | 3100 | 1500 | 32.0 | 50.7 | GZ6.35 | C-8 | AL-Specular |
| JIR 12-20 40H/5 | 12 | 20 | 3000 | 4000 | 52.0 | 50.7 | GX5.3 | C-8 | AL-Specular |
| JIR 12-20 50H/5-AL/FA | 12 | 20 | 2900 | 5000 | 150.0 | 50.7 | GX5.3 | C-6 | AL-Faceted |
| JIR 12-35 40H/5 | 12 | 35 | 3000 | 4000 | 52.0 | 50.7 | GX5.3 | C-8 | AL-Specular |
| JCR 15-150 10H/5-AL | 15 | 150 | 3300 | 1000 | 34.0 | 50.7 | GX5.3 | C-8 | AL-Specular |
| JCR 21-150 /AL | 21 | 150 | 3200 | 200 | 44.5 | 50.7 | GX5.3 | CC-6 | AL-Specular |
| JCR 21-150 10H/5-AL | 21 | 150 | 3200 | 1000 | 44.5 | 50.7 | GX5.3 | CC-6 | AL-Specular |
| JTR 24-250 10H/5-AL | 24 | 250 | 3200 | 1000 | 31.7 | 50.7 | GX5.3 | CC-6 | AL-Specular |
| JTR 24-250 10H/5-AL/FA | 24 | 250 | 3200 | 1000 | – | 50.7 | GX5.3 | CC-6 | AL-Faceted |
| JIR 24-28 /5-AL | 24 | 28 | 2650 | 8000 | 38.0 | 50.7 | GX5.3 | CC-6 | AL-Specular |
| ETJ 120-250 /AL | 120 | 250 | 3250 | 175 | 36.5 | 50.7 | GX5.3 | CC-8 | AL-Specular |

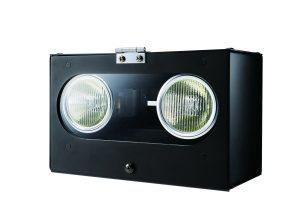

HySil1500 Hyperspectral Imaging Unit
- High Intensity Near-Infrared Linear Lighting
- The center of spectral intensity is around 1300-1400nm.
- A general-purpose light suitable for high-intensity linear or area illumination

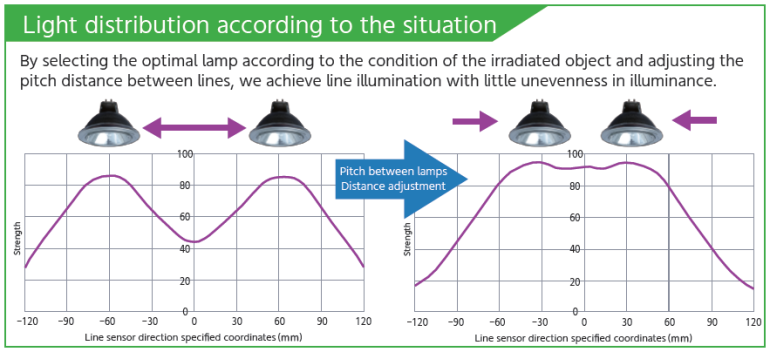

- Adjustable lamp mechanism provides the optimal light spread (width) by adjusting the light distribution type and pitch distance.
- Accurate & Speedy Inspection
- Capture clear images with wavelengths not visible before
- Increased throughput without slowing down conveyor belt speeds
- 8,000-hour minimum life. More than 2x from conventional light source
HySil1500 - Two Models
- HySil 1500E-2: Two Lamp Unit
- 160×W80×H100mm
- HySil 1500E-4: Four Lamp Unit
- L340×W80×H100mm
